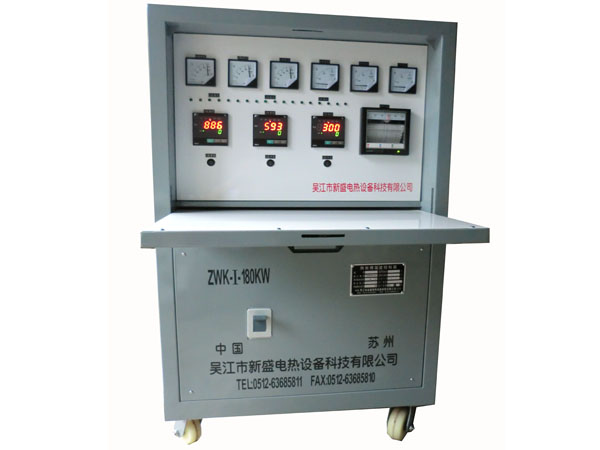

ZWK/WCK-180KW intelligent heat treatment temperature control box

Characteristic

1, three type PXR5 series intelligent microcomputer temperature controller

2, the accuracy of the PID and fuzzy control function of the whole set is 1.

8, every point of the 3 section of the slope / set up temperature, heat preservation, cooling

4, over temperature, low temperature alarm, intuitive and reliable

5, controllable silicon output volume is small, weight 225 kg

6, adapted to high-altitude installation, maintenance, preheating and hydrogen treatment

Performance:

Rated voltage 380V (three-phase four wire)

Rated power 180KW, temperature control points 3, record points 6, the highest temperature 1000

Temperature curve of real time printing process with automatic temperature recorder

Output voltage 220V, also can be according to the actual needs of customers to configure the 0-220V adjustable pressure function

The device output power is 30KW, 60KW, 90KW, 120KW, 180KW, 360KW, 240KW

Model

Rated output power

(kw)

Temperature control point

Record points

ZWK/WCK-30-0101

30

1

1

ZWK/WCK-60-0306

6036

ZWK/WCK-90-0306

9036

ZWK/WCK-120-0306

12036

ZWK/WCK-180-0306

18036

ZWK/WCK-240-0612

240612

ZWK/WCK-360-1212

3601212

Model description

There are three parts in the heat treatment equipment of the metal component, that is, the ceramic electric heater, the temperature control box and the auxiliary material.

1 ceramic electric heater: that is, heating element, is the heat source of the workpiece. My company offers you a variety of models and specifications, they have the characteristics, performance is not the same. Such as LCD type crawler heater, SCD rope shaped heater, NJ heat frame type heater and so on, which normally takes users according to the heating of the workpiece shape, thickness and the required temperature values to choose.

2 temperature control box: it is with the ceramic electric heater, for the ceramic electric heater to provide power, and control its working state so as to achieve the purpose of temperature control. Temperature control box is equipped with temperature controller for controlling, measuring the temperature of the workpiece, and the configuration of the temperature recorder used to record the temperature curve of the workpiece in real time so that the user can record the record. At present, our company provides users with a variety of temperature control box, such as ZWK, RWK, WCK series intelligent temperature control box, TCS, DWK series computer temperature control box, LWK series temperature control box, the user needs to be based on heating, heating process requirements and on-site requirements to select the ideal practical temperature control box.

3 auxiliary materials: the main KJ type fast connection wire (temperature control box and the distance between the heater, also for 36V, 110V, 55V and other heaters in series, and is equipped with a quick connection), thermocouple (temperature sensor for measuring the temperature of the workpiece), the connection wire (thermocouple and temperature control box distance between the connecting line), aluminum silicate heat insulation cotton (to prevent heat emitting).

Use notes:

1, the heating workpiece must be a reliable grounding.

2, the use of the heater does not allow overlap.

3, the thermocouple should be reliable and the workpiece.

Note:

1, the width of the heater should be 8-12 times the wall thickness of the heated object.

2, according to the needs of the user can complete sets of supply wire cable, thermocouple, thermal insulation covering materials and special temperature control cabinet and capacitance welding apparatus.

3, power error is 3%, the form tolerance is 2%.

4, special specifications can be customized.
